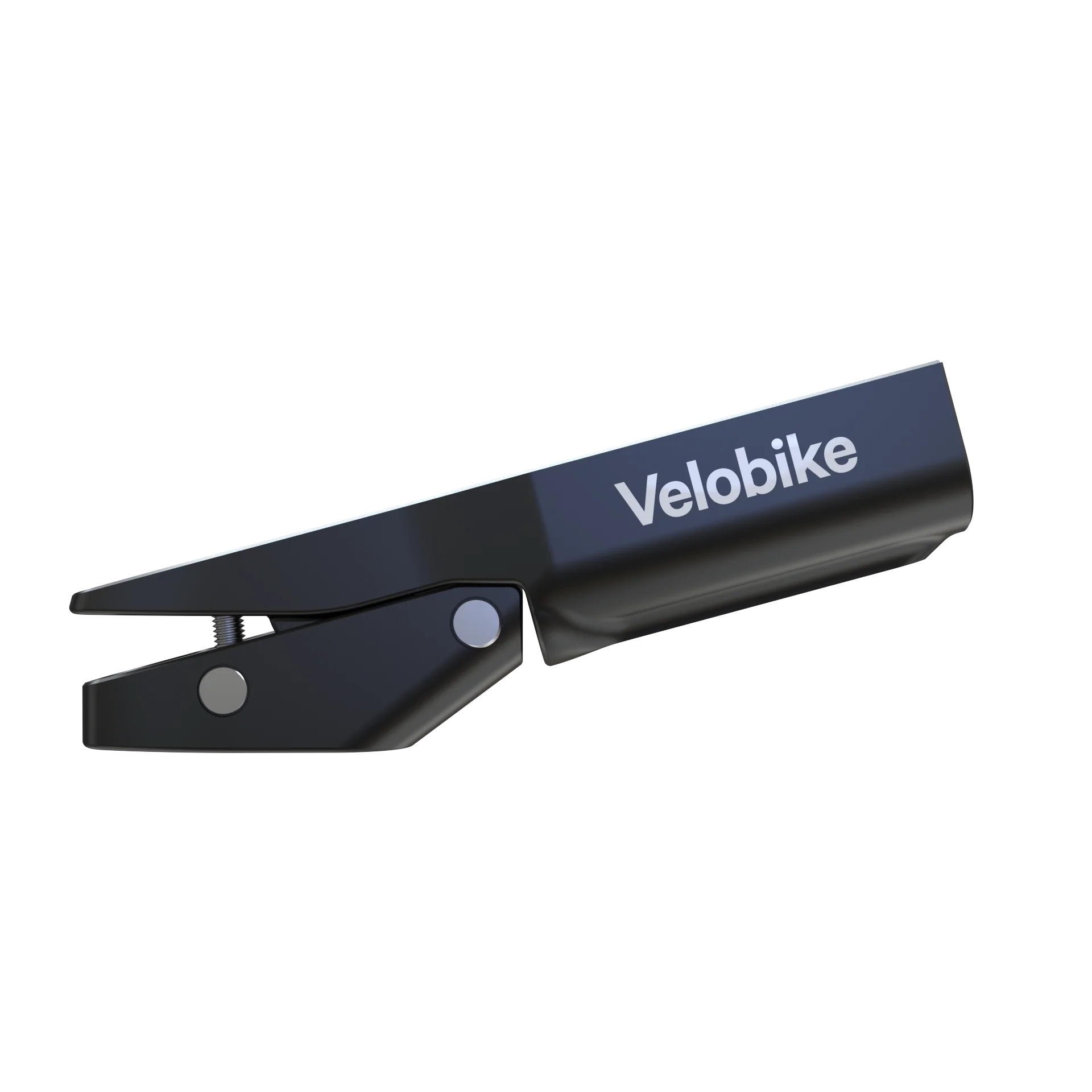

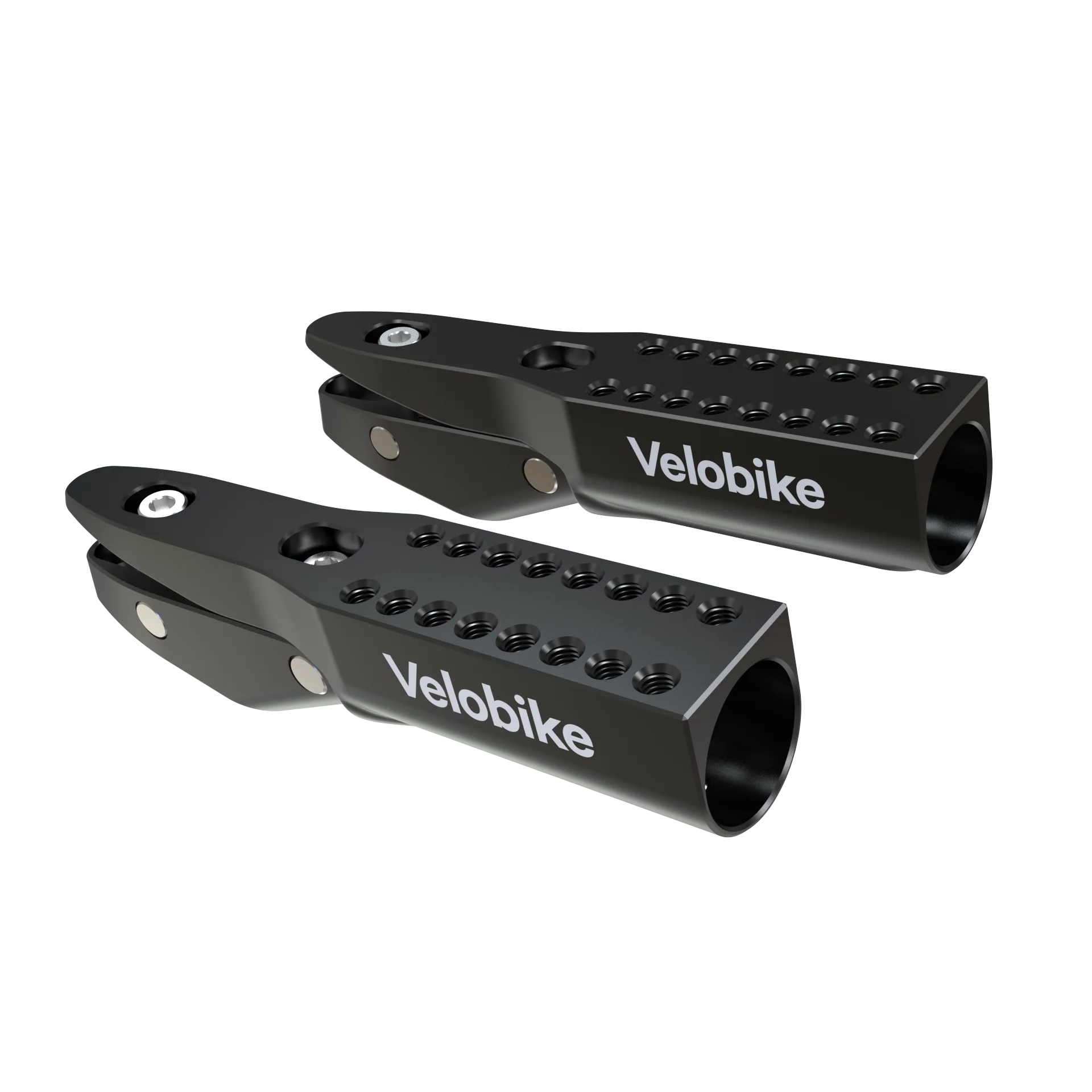

Aerobar Adjustable Risers

Universally-fitting Aerobar Adjustable Risers developed in collaboration with Cycling New Zealand in the build-up to the Paris Olympics. The adjustability helps the team dial in their position with micro adjustments to optimise the bike fit in relation to the UCI geometry rules.

The universal design enables the rider to micro adjust their standard 22.2mm diameter tube-style extensions from 15° up to 30°. Internal cable routing is considered for road time trial configurations.

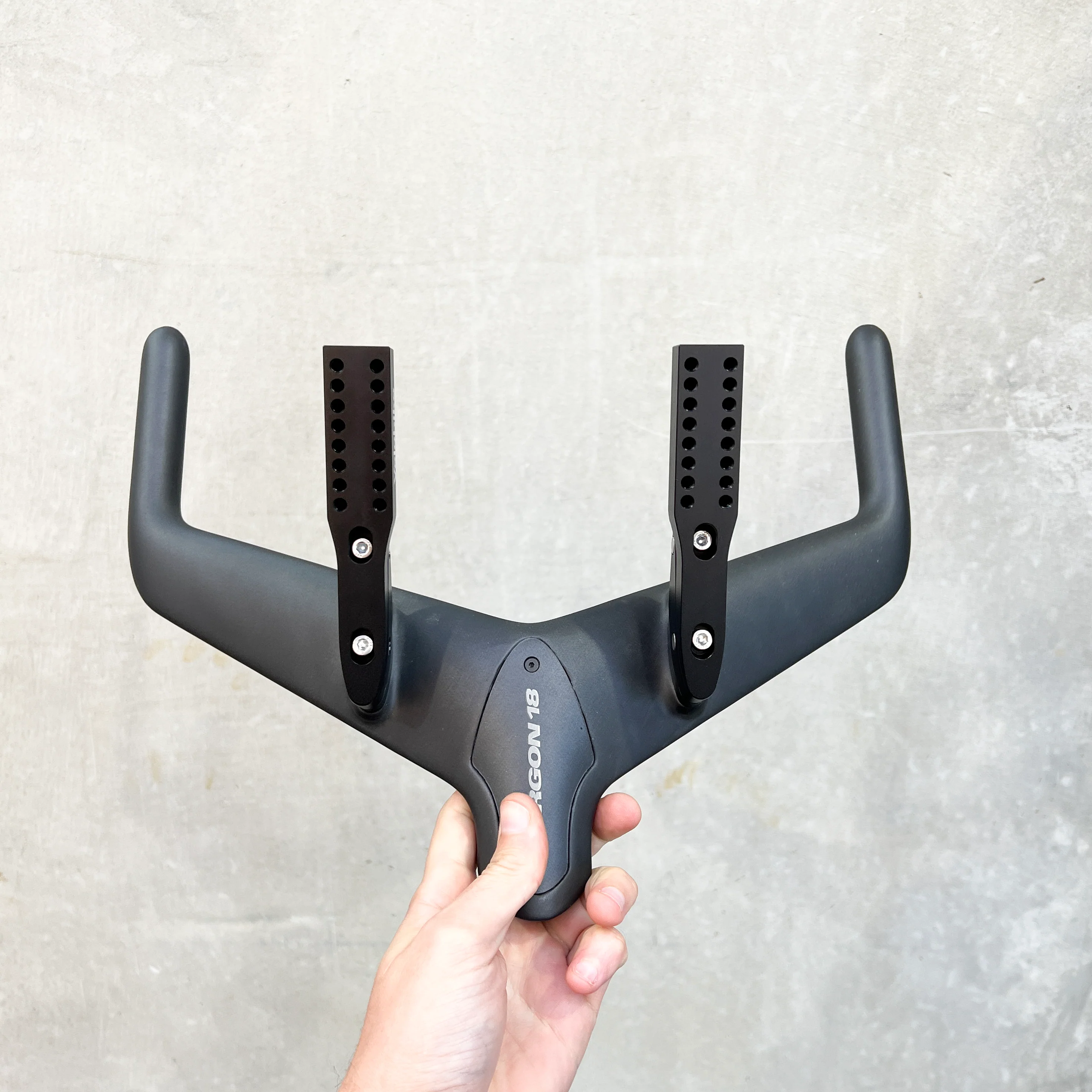

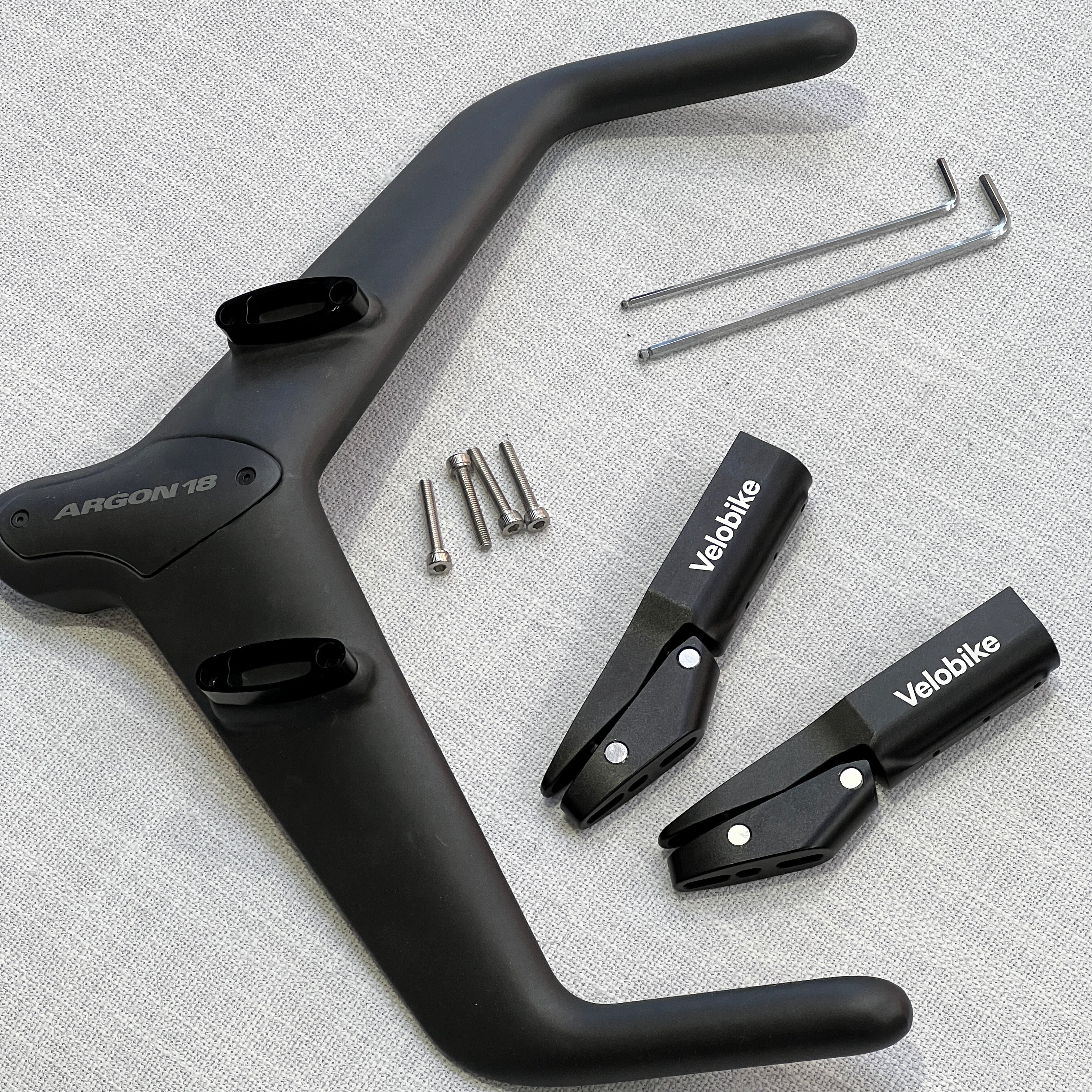

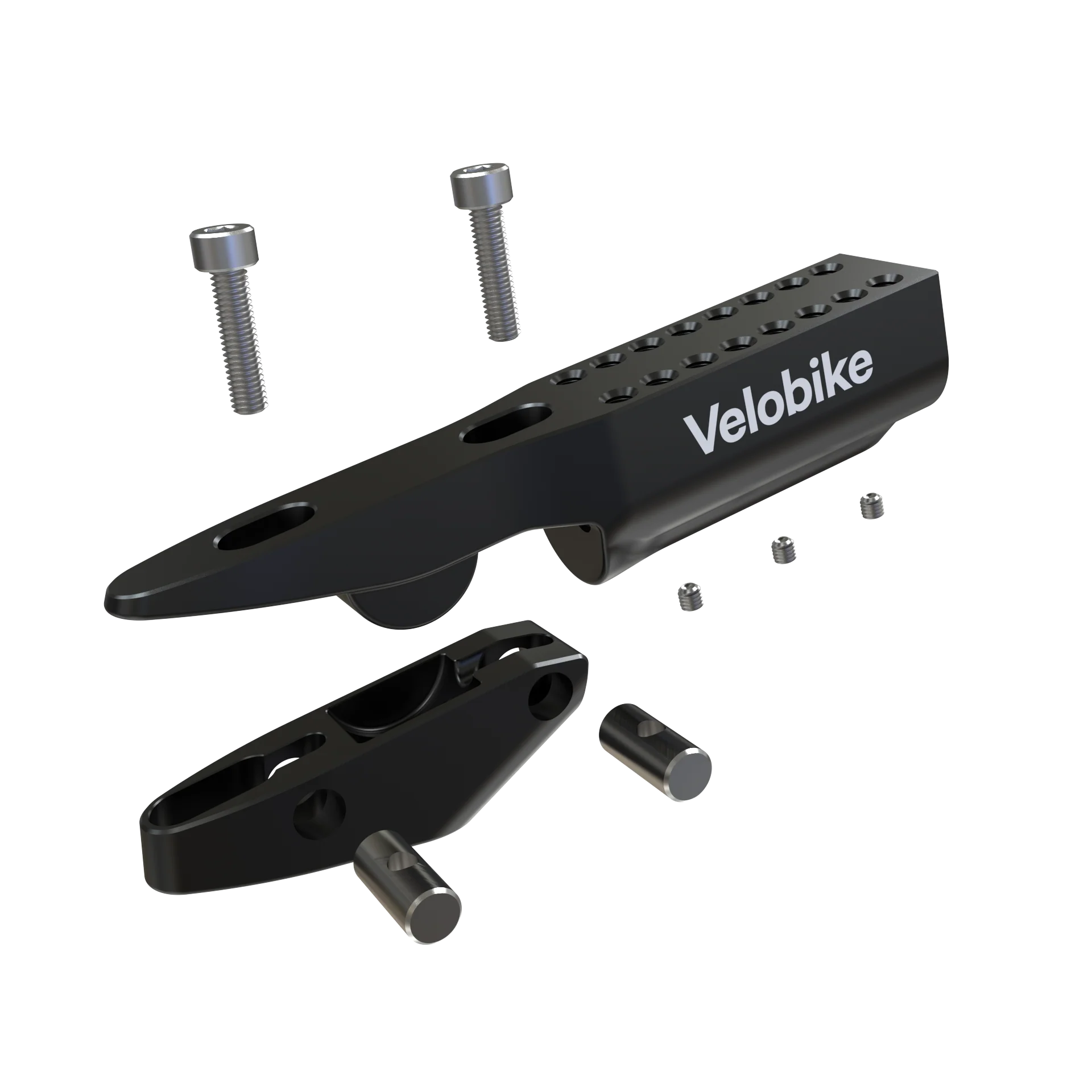

The risers are compatible with almost any base bar. The risers can fit onto base bars with bolt spacing from 20mm through to 40mm, in M5 or M6 bolt sizes, and with a bottom-up or top-down bolting configuration. Note that when mounting in a bottom-up bolt configuration, a nut is held captive within the riser (fastenings not included).
